Oil-Filled Embedded All-Stainless Steel Pressure Gauges

Applied to an acid, alkali or clean requirements of the fluid environment.

Especially suitable for the food industry, petrochemical industry, water purification equipment.

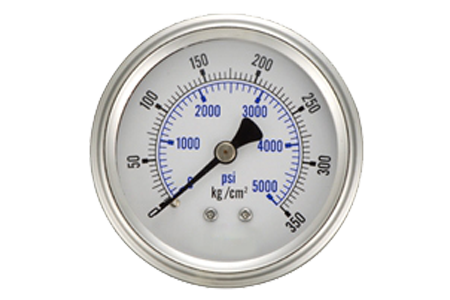

Oil-Filled Vertical All-Stainless Steel Pressure Gauges
Accuracy	±0.5~1.5 % F.S.D
Pressure Range	-76-0cmHg~-76-30 kg/cm²  1~1000 kg/cm² (bar.Mpa.kpa.psi)
Operatingw：orking temperature	-Max 60℃
Temperature：Ambien	-25℃ ～60℃
Movement	A1S1 316
Bourdon Tube	A1S1 316
Case	A1S1 304
Upper Ring	A1S1 304
Window	Laminated safety glass or Acrylic
Connection	A1S1 316
Connection Size	2.5"-14mm,18mm-1/4",3/8"PT.NPT.PF  4"-22mm-1/4",3/8,1/2" PT,NPT,PF
Dial	Aluminium in white
Pointer	Aluminium in black
Filling	99.7% Glycerin  100# silicone oil  1000# silicone oil
