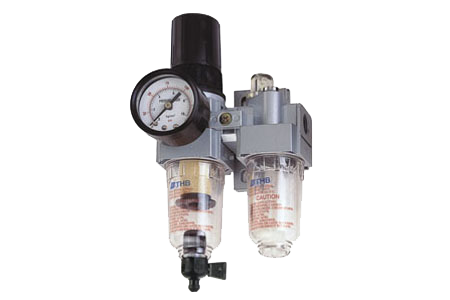

F.R.L. Air Control Unit, Mini Type

application.

water accumulation is less than 1KG.

Product Specification

F.R.L. Air Control Unit, Mini Type
Type Description		FRL201	FRL202	FRL212
Port Size (PT, NPT)		1/8"	1/4"	1/4"
Filter Element		5μ
Max Input Pressure (PSI)		150		280
Max Output Pressure (PSI)		7~142		7~227
Max Flow (L/ min)		1000	1100
Operating Temperature Range (°C)		5~60°C
Drain Capacity (ml)		15ml
Oil Capacity (ml)		30ml
Recommendable Lubricants		ISO VG-32
More Options	Air Filter	F201	F202	F212
	Regulator	R201	R202	R212
	Air Filter + Regulator	FR201	FR202	FR212
	Lubricator	L201	L202	L212
