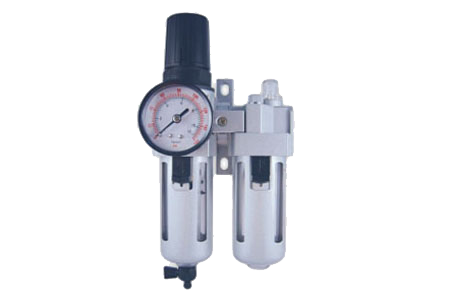

F.R.L. Air Control Unit, Regular type

protection.

Product Specification

F.R.L. Air Control Unit, Regular type
Type Description		FRL502	FRL503	FRL504
Port Size (PT, NPT)		1/4"	3/8"	1/2"
Filter Element		5μ
Max Input Pressure (PSI)		215
Max Output Pressure (PSI)		7~150
Max Flow (L/ min)		2200	3000	3100
Operating Temperature Range (°C)		5~60°C
Drain Capacity (ml)		55ml
Oil Capacity (ml)		80ml
Recommendable Lubricants		ISO VG-32
More Options	Air Filter	F502	F503	F504
	Regulator	R501	R503	R504
	Air Filter + Regulator	FR502	FR503	FR504
	Lubricator	L502	L503	L504
