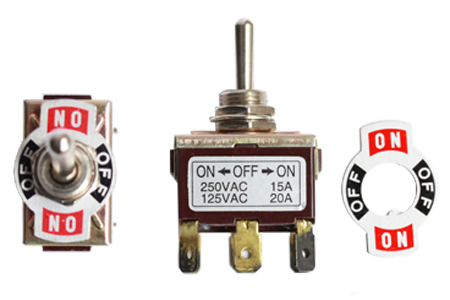

搖頭開關

A: 2P on-off
B: 3P on-off
C: 3P on-off-on
D: 2P (on)-off
E: 2P (on)-(off)
F: 3P (on)-off
G: 3P (on)-off-(on)
H: 3P (on)-off-on

詢價上一筆

產品敘述

Rating: 16A 125VAC/ 10A 250VAC/ 15A 250VAC.
Contact Resistance: 30MΩ(max).
Insulating Resistance: DC 500V 100MΩ(min).
Dielectric Strength: 1500VAC/ 1 minute.
Operating Temperature: -20C~ +65C
Electrical Life: 50,000 make and break cycles at full load.

*( ): Momentary

Approval: 3-15A 125/250VAC
